nRF70 系列
● 2.4 GHz and 5 GHz dual-band
● Low-power and secure Wi-Fi for the IoT
● Ideal coexistence with Bluetooth LE
● Supported in nRF Connect SDK
● Target Wake Time (TWT)
● SPI / QSPI
● Wi-Fi 6 Station (STA)
● SoftAP
● Wi-Fi Direct
● Complies with 802.11a/b/g/n/ac/ax
● 1 Spatial Stream (SS)
● 20 MHz channel bandwidth
● 64 QAM (MCS7), 86 Mbps PHY throughput
● OFDMA (Downlink and Uplink)
● BSS coloring
● WPA3 Personal and Enterprise
● Co-existence interfaces

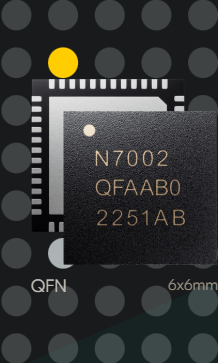

nRF7002
低功耗、進階安全性、無縫共存
nRF91 系列
● Fully integrated SiP module for cellular IoT, NTN and DECT NR+
● Multimode LTE-M/NB-IoT/NTN modem with DECT NR+ support and GNSS
● 700-2200 MHz LTE band support
● Power Class 5 20 dBm
● Power Class 3 23 dBm
● 915 MHz & 1.9 GHz NR+ band support
● Certified for global operation
● Dedicated programmable application processor and memory
● 64 MHz Arm Cortex-M33
● 1 MB flash + 256 KB RAM
● Arm TrustZone + Arm CryptoCell
● Support for Integrated SIM (nuSIM and SoftSIM)
● Resilient and geographically focused supply chain

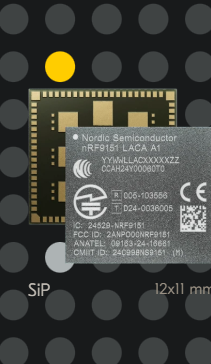

nRF9151
低功耗SiP，整合LTE-M/NB-IoT/NTN和DECT NR+調變解調器以及GNSS
nRF54L 系列
● 128 MHz Arm® Cortex®-M33
● 1 MB NVM and 192 KB RAM
● Ultra-low-power multiprotocol 2.4 GHz radio
● 1.2 to 1.7 V supply and GPIO voltage
● <50 nA hibernation mode for shipping and storage
● 3x SPI/TWI/UART
● ADC
● Global RTC available in System OFF
● 128 MHz RISC-V coprocessor
● TrustZone® isolation, tamper detection, and
cryptographic engine with side-channel leakage protection
● Package options: CSP29 (1.9x2.3mm), QFN48

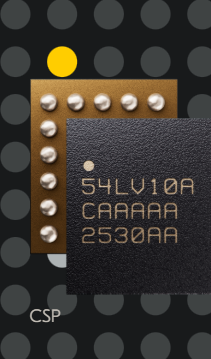

nRF54LV10A
超低功耗、低電壓藍牙LE SoC
nRF70 系列
● Low-power and secure Wi-Fi for the IoT
● Ideal coexistence with Bluetooth LE
● Supported in nRF Connect SDK
● Target Wake Time (TWT)
● SPI / QSPI
● Wi-Fi 6 Station (STA)
● SoftAP
● Wi-Fi Direct
● Complies with 802.11b/g/n/ax
● 1 Spatial Stream (SS)
● 20 MHz channel bandwidth
● 64 QAM (MCS7), 86 Mbps PHY throughput
● OFDMA (Downlink and Uplink)
● BSS coloring
● WPA3 Personal and Enterprise
● Co-existence interfaces

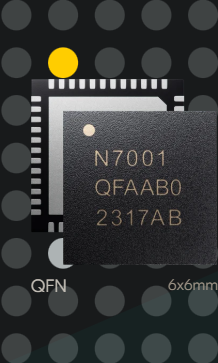

nRF7001
低功耗、進階安全性、無縫共存
nRF91 系列
● Pre-certified connectivity module for LTE-M and NB-IoT with GNSS
● LTE-M and NB-IoT modem with 3GPP Rel. 14 support
● 700-2200 MHz LTE band support
● Power Class 5 20 dBm
● Power Class 3 23 dBm
● Certified for global operation
● Extensive peripheral
● Secure firmware updates via nRF Cloud
● Resilient and geographically focused supply chain
nRF91M1
超低功耗 LTE-M 和 NB-IoT 模組
nRF54L 系列
● 128 MHz Arm® Cortex®-M33
● 0.5 MB NVM and 96 KB RAM
● Ultra-low-power 2.4 GHz radio
● 3x SPI/TWI/UART
● ADC, PWM and QDEC
● Global RTC available in System OFF
● Baseline security configuration designed to support compliance with regulatory requirements
● Package options: QFN48
nRF54LS05B
入門級超低功耗藍牙低功耗SoC
nRF91 系列
● Fully integrated SiP for cellular IoT
● Multimode LTE-M/NB-IoT modem with GNSS
● 700-2200 MHz LTE band support
● Certified for global operation
● Dedicated application processor and memory
● 64 MHz Arm Cortex-M33
● 1 MB flash + 256 KB RAM
● Arm TrustZone + Arm CryptoCell
● Support for Integrated SIM (nuSIM and SoftSIM)

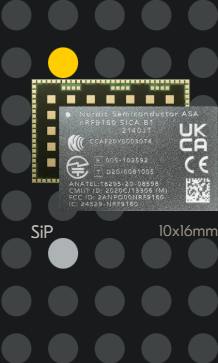

nRF9160
低功耗SiP，整合LTE-M/NB-IoT調變解調器和GNSS
nRF54L 系列
● 128 MHz Arm® Cortex®-M33
● 0.5 MB NVM and 96 KB RAM
● Ultra-low-power 2.4 GHz radio
● 3x SPI/TWI/UART
● ADC, PWM and QDEC
● Global RTC available in System OFF
● Baseline security configuration designed to support compliance with regulatory requirements
● Package options: QFN48
nRF54LS05A
入門級超低功耗藍牙低功耗SoC
nRF93 系列
● Pre-certified connectivity module for LTE Cat-1bis
● LTE Cat-1bis modem with 3GPP Rel. 14 support
● 617-2690 MHz LTE FDD and TDD band support
● Power Class 3 (23 dBm)
● Certified for global and regional operation (GCF, PTCRB)
● Peripherals including high-speed USB, UART, IOs, coexistence interface and more
● Support for (e)UICC/eSIM (SGP.32 IoT) and Software SIM framework
● Secure firmware updates via nRF Cloud
● Location services using Wi-Fi scanning and cell location

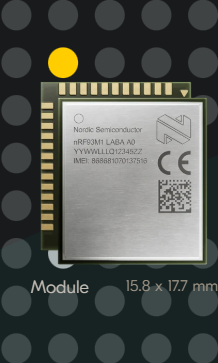

nRF93M1
低功耗、易於使用的1類bis模組
