nRF54L 系列
● 128 MHz Arm® Cortex®-M33
● 0.5 MB NVM and 96 KB RAM
● Ultra-low-power multiprotocol 2.4 GHz radio
● 1x High-speed SPI/UART
● 4x SPI/TWI/UART
● ADC, I2S, PDM, NFC, PWM, and QDEC
● Global RTC available in System OFF
● 128 MHz RISC-V coprocessor with support for SoftPeripherals
● TrustZone® isolation, tamper detection, and cryptographic engine with side-channel leakage protection
● Package options: QFN52, QFN48, QFN40

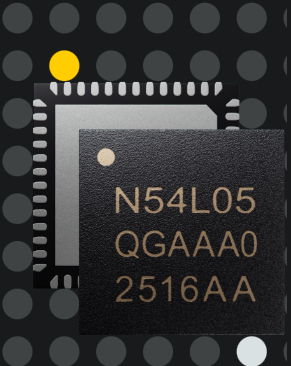

nRF54L05
系統級晶片
超低功耗無線系統級晶片
nRF54L 系列
● 128 MHz Arm® Cortex®-M33
● 1 MB NVM and 192 KB RAM
● Ultra-low-power multiprotocol 2.4 GHz radio
● 1x High-speed SPI/UART
● 4x SPI/TWI/UART
● ADC, I2S, PDM, NFC, PWM, and QDEC
● Global RTC available in System OFF
● 128 MHz RISC-V coprocessor with support for SoftPeripherals
● TrustZone® isolation, tamper detection, and cryptographic engine with side-channel leakage protection
● Package options: QFN52, QFN48, QFN40

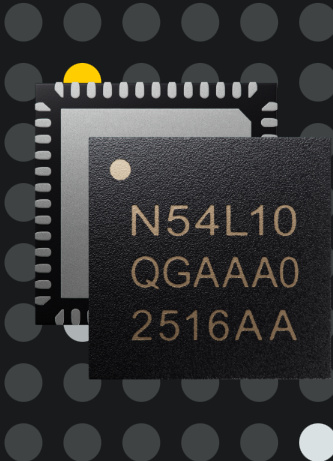

nRF54L10
系統級晶片
超低功耗無線系統級晶片
nRF54L 系列
● 128 MHz Arm® Cortex®-M33
● 1.5 MB NVM and 256 KB RAM
● Ultra-low-power multiprotocol 2.4 GHz radio
● 1x High-speed SPI/UART
● 4x SPI/TWI/UART
● ADC, I2S, PDM, NFC, PWM, and QDEC
● Global RTC available in System OFF
● 128 MHz RISC-V coprocessor with support for SoftPeripherals
● TrustZone® isolation, tamper detection, and cryptographic engine with side-channel leakage protection
● Package options: CSP47, QFN52, QFN48, QFN40

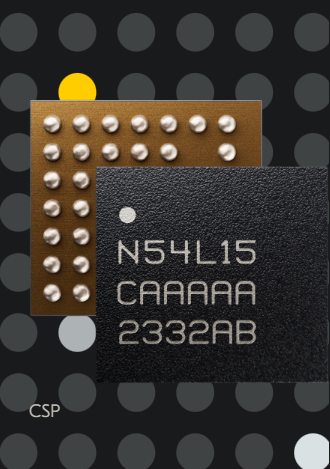

nRF54L15
系統級晶片
超低功耗無線系統級晶片
nRF54L 系列
● 128 MHz Arm® Cortex®-M33
● 2 MB NVM and 512 KB RAM
● Ultra-low-power multiprotocol 2.4 GHz radio
● 1x High-speed SPI/UART
● 6x SPI/TWI/UART
● High-speed USB
● ADC, TDM, PDM, NFC, PWM, and QDEC
● Global RTC available in System OFF
● 128 MHz RISC-V coprocessor with support for SoftPeripherals
● Up to 66 GPIOs
● TrustZone® isolation, tamper detection, and cryptographic engine with side-channel leakage protection
● Package options: CSP98, CSP61, QFN52

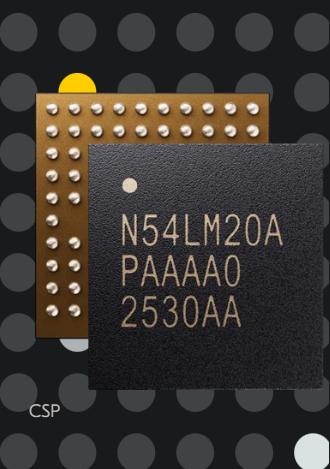

nRF54LM20A
系統級晶片
超低功耗無線系統級晶片
